Quick start

Basic Functionality#

This basic example tests that your PowerBI report can be parsed and reassembled by pbi_core.

1
2
3
4
from pbi_core import LocalReport

report = LocalReport.load_pbix("example.pbix")  # (1)!
report.save_pbix("example_out.pbix")  # (1)!

Common Issue

One of the current limitations in the pbi_core library is the incomplete attrs typing of the Layout file, especially of the properties of visual elements.

If you encounter an error message for this, please reate an issue on the Github page with the error message. If you're able, attaching a pbix file will make the fix quicker and can be added to the test suite to ensure the issue doesn't re-appear in future versions.

The vast majority of these issues are due to properties that are missing from the field definition of classes. To allow them to be parsed as simple dictionaries, you can update the cattrs Converter in pbi_core\attrs\cattrs.py to use forbid_extra_keys=False in the source code.

Altering Data model#

This example shows how you can add automatic descriptions to PowerBI columns (possibly from some governance tool??)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
from pbi_core import LocalReport

report = LocalReport.load_pbix("example.pbix")
for column in report.ssas.columns:
    # Keys are system columns that can't be viewed or altered in PowerBI
    if column.is_key:
        continue
    column.description = "pbi_core has touched this"
# save_pbix will automatically update the SSAS model before saving to file
report.save_pbix("example_out.pbix")

Exporting records in SSAS tables#

This example shows how to find SSAS records and extract data from report columns

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
from pbi_core import LocalReport

report = LocalReport.load_pbix("example_pbis/api.pbix")
values = report.ssas.columns.find({"name": "a"}).data()
print(values)
values2 = report.ssas.tables.find({"name": "Table"}).data()
print(values2)

measure = report.ssas.measures.find({"name": "Measure"})
# Note: the first column is a hidden row-count column that can't be used in measures
column = [x for x in measure.table().columns() if not x.is_key][0]
values3 = measure.data(column, head=10)
print(values3)

Generating Lineage Charts#

This example displays a lineage chart in HTML:

1
2
3
4
5
6
7
from pbi_core import LocalReport

report = LocalReport.load_pbix("example.pbix", kill_ssas_on_exit=True)
col = report.ssas.columns.find({"name": "MeasureColumn"})
# Can also generate a "children" lineage chart
# Can also call to_markdown() to embed the results in markdown
col.get_lineage("parents").to_mermaid().show()

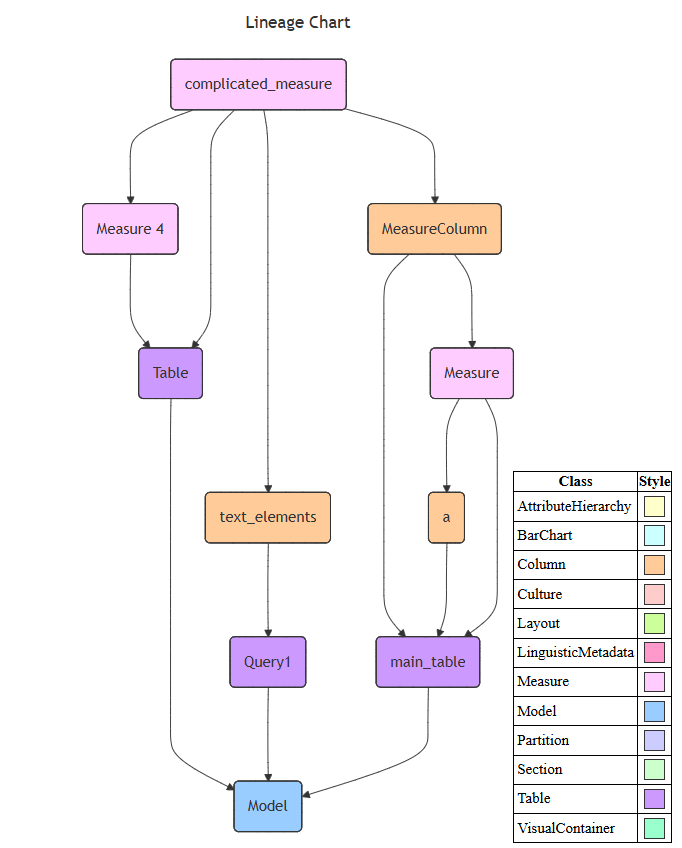

Example lineage output:

Example Lineage Chart

Improved Multilanguage Support#

This example displays the ability to easily convert PBIX reports to alternate languages:

1
2
3
4
5
6
7
8
from pbi_core import LocalReport
from pbi_core.misc.internationalization import get_static_elements, set_static_elements

report = LocalReport.load_pbix("example.pbix", kill_ssas_on_exit=True)
x = get_static_elements(report.static_files.layout)
x.to_excel("multilang.xlsx")

set_static_elements("multilang1.xlsx", "example.pbix")

Automatic Data Model Cleaning#

One of the core tensions in PowerBI is the size of the data model. In development, you want to have many measures, columns, and tables to simplify new visual creation. After developing the report, the additional elements create two issues:

  1. It's difficult to understand which elements are being used and how they relate to each other
  2. The additional columns and tables can slow down visual rendering times, negatively impacting UX

pbi_core has an automatic element culler that allows you to remove unnecessary elements after the report has been designed:

1
2
3
4
5
from pbi_core import LocalReport

report = LocalReport.load_pbix("example_pbis/api.pbix")
report.cleanse_ssas_model()
report.save_pbix("cull_out.pbix")

Performance Analysis#

This example shows how to analyze the performance of a Power BI report's visual:

Warning

In the previous implementations, the performance trace occassionally hangs for 2-5 minutes. The library has solved this by pinging the SSAS server during the trace with a trivial EVALUATE {1} command. Although this seems to have fixed the issue, it clearly doesn't touch the root issue. Therefore, if the trace hangs, you may need to kill and restart the process.

1
2
3
4
5
6
7
8
from pbi_core import LocalReport

report = LocalReport.load_pbix("example_pbis/example_section_visibility.pbix")
# x = report.static_files.layout.sections[0].visualContainers[0].get_performance(report.ssas)
perf = report.static_files.layout.sections[0].get_performance(report.ssas)
print(perf)
print("=================")
print(perf[0].pprint())

Which generates the following output.

2025-07-05 14:07:31 [info     ] Loading PBIX                   path=example_pbis/example_section_visibility.pbix
2025-07-05 14:07:33 [warning  ] Removing old version of PBIX data model for new version db_name=example_section_visibility
2025-07-05 14:07:33 [info     ] Tabular Model load complete
2025-07-05 14:07:35 [info     ] Beginning trace
2025-07-05 14:07:38 [info     ] Running DAX commands
2025-07-05 14:07:41 [info     ] Terminating trace
[Performance(rows=5, total_duration=0.0, total_cpu_time=0.0, peak_consumption=1.0 MiB]
=================
Performance(
    Command:

        DEFINE VAR __DS0Core =
                SUMMARIZECOLUMNS('example'[b], "Suma", CALCULATE(SUM('example'[a])))

        EVALUATE
                __DS0Core

    Start Time: 2025-07-05T19:07:38.450000+00:00
    End Time: 2025-07-05T19:07:38.453000+00:00
    Total Duration: 4 ms
    Total CPU Time: 0 ms
    Query CPU Time: 0 ms
    Vertipaq CPU Time: 0 ms
    Execution Delay: 0 ms
    Approximate Peak Consumption: 1.0 MiB
    Rows Returned: 5
)

Custom DAX Commands#

You can also trace custom DAX commands like so:

1
2
3
4
5
6
7
import pbi_core

command = "EVALUATE {1}"
report = pbi_core.LocalReport.load_pbix("example_pbis/api.pbix")
with report.ssas.get_performance_trace() as perf_trace:
    perf = perf_trace.get_performance(command)
print(perf[0])

Which generates the following output:

2025-10-16 16:02:44 [info     ] Loading PBIX report            load_ssas=True load_static_files=True path=example_pbis/api.pbix
2025-10-16 16:02:44 [info     ] Loading PBIX SSAS              path=example_pbis/api.pbix
2025-10-16 16:02:44 [info     ] Re-using existing local SSAS instance port=52125
2025-10-16 16:02:44 [warning  ] Removing old version of PBIX data model for new version db_name=api
2025-10-16 16:02:44 [info     ] Tabular Model load complete
2025-10-16 16:02:44 [info     ] Syncing from SSAS              db_name=api
2025-10-16 16:02:44 [info     ] Loading PBIX Static Files      path=example_pbis/api.pbix
2025-10-16 16:02:44 [info     ] Loaded PBIX report             components=ssas+static
2025-10-16 16:02:44 [info     ] Beginning trace
2025-10-16 16:02:46 [info     ] Running DAX commands
2025-10-16 16:02:47 [info     ] Terminating trace
[Performance(rows=1, total_duration=0.0, total_cpu_time=0.0, peak_consumption=0.0 B]

Styling Layout Elements#

This example shows how to apply style changes to elements in a PowerBI report globally. This ensures consistent styling and protects hands from carpal tunnel.

Alternate Selection Methods

We also included two alternate methods of finding elements on lines 8 and 9. You can pass dictionaries of attribute/value pairs or a function returning a boolean and only elements matching those will return. One downside of these methods in this case is that Slicer is a more specific type than BaseVisual. The return of the find_all method returns list[<input type>], so the more specific type of Slicer will provide better autocompletion if your IDE supports it. For instance, the Slicer class knows there's an objects attribute and it's children, but the BaseVisual doesn't.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
from pbi_core import LocalReport
from pbi_core.static_files.layout.visuals.properties.base import SolidColorExpression
from pbi_core.static_files.layout.visuals.slicer import Slicer

report = LocalReport.load_pbix("example_pbis/api.pbix", load_ssas=False, load_static_files=True)
slicers = report.static_files.layout.find_all(Slicer)
# from pbi_core.static_files.layout.visuals.base import BaseVisual
# slicers = report.static_files.layout.find_all(BaseVisual, {"visualType": "slicer"})
# slicers = report.static_files.layout.find_all(BaseVisual, lambda v: v.visualType == "slicer")
for s in slicers:
    new_color = SolidColorExpression.from_hex("#FF0000")
    s.objects.header[0].properties.fontColor = new_color
    s.objects.items[0].properties.fontColor = new_color
report.save_pbix("example_out.pbix")
